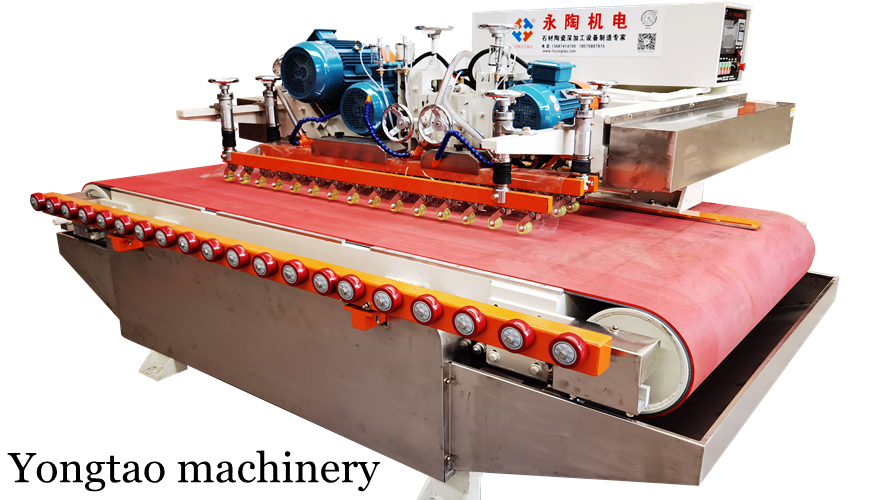

YTQZ-A/3-2400 Three Blade Automatic Ceramic Tile Cutting Machine

PRODUCT DETAILS

Product introduction

YTQZ-A/3-2400 Three Blade Automatic Ceramic Tile Cutting Machine, is yongtao machinery combined with market demand for development of a large size cutting Automatic Ceramic Tile Cutting Machine. The maximum width can be cut 2.4 meters, and the length can be cut 2.7 meters. The front and back of the machine each has a shelf, convenient to put bricks and bricks.There is a support frame on the side of the machine for processing large size plates. This Three Blade Automatic Tile Cutting Machine has many advantages such as simple operation, high cutting precision, low cutting cost, fast cutting speed and good cutting effect. For cutting one into two, choose this large size Three Blade Automatic Ceramic Cutting Machine, can cut both large plate, also can cut small plate. Cutting head dual cooling system (water cooling and oil cooling), cutting head in high speed operation, to avoid high temperature and burn the bearing. This Three Blade Automatic Ceramic Tile Cutting Machine has been used by large ceramic factories and ceramic processing plants in China. The customer feedback results are very good. It is a recommended Three Blade Automatic Ceramic Cutting Machine. With a small footprint, can be continuous cutting a large plate ceramic cutting machine (CNC sintered stone cutting machine)!

Three Blade Automatic Tile Cutting Machine:

Mechanical function: Cut and trim the original edge

Cutting materials: ceramic tile, ceramic plate, sintered stone, quartz stone, artificial stone

Cutting size: maximum 2400mm cut in half

Cutting method: the first blade cuts half, the second blade repairs the sharp edge, the third blade cuts

Three Blade Automatic Ceramic Cutting Machine Product features:

1, CNC system control cutting size, high machining accuracy;

2, the second blade and the third blade lifting, using electric lifting, lifting speed, more convenient operation;

3. Three blades are used for cutting, cutting half in front, repairing the original edge in the middle and cutting the end with one blade. The cutting precision can reach within 0.1mm;

4. Stainless steel water cover is used on the periphery of the whole machine to prevent sewage turbulence and make the whole more beautiful.

5, three blade cutting damage rate is lower, cutting effect is better, cutting speed is fast, equipment stability is good;

6, the use of small saw blade cutting, cutting cost is low, divided into two, with cutting edge does not break off Angle, no size and first class phenomenon;

7, the brick adopts 3 rows of small pressure wheel, can process smaller size;

8, the main belt adopts two layers, the above red part can be cut at will;

9, there is a support frame outside the machine, processing 2.4 meters of large plate use;

10, the maximum processing of 1200*2400mm ceramic tile or sintered stone, cutting the size of 1200*1200mm;

11, the gauge screw adopts imported precision oil bubble screw, add double slide structure, better stability, higher processing accuracy;

12, the back of the 2 cutting head distance is closer, cutting effect is better, can effectively avoid cutting to the last piece of time, avoid falling corners!

Three Blade Automatic Ceramic Tile Cutting Machine Technical parameters:
