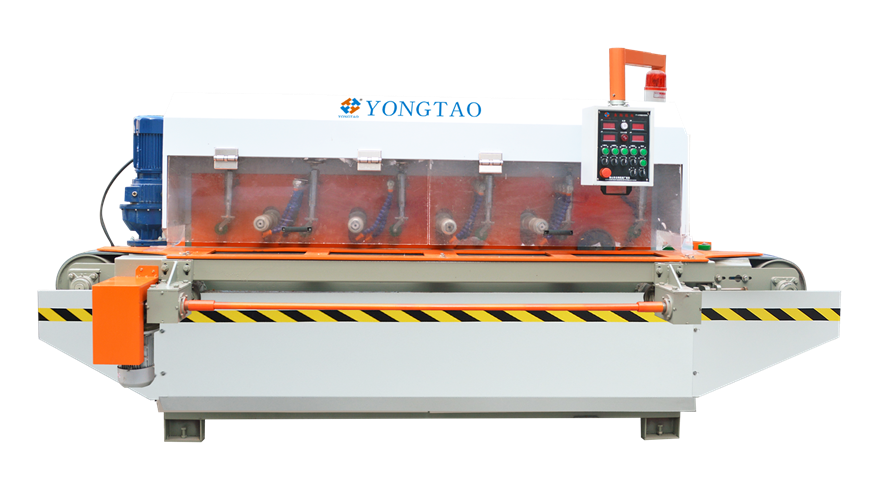

YSX-250 4 Head Automatic Stone Moulding Machine
Searching for Stone Moulding Machine? Yongtao Machinery is a good choice! We provide high-performance stone moulding machine of fast speed and good processing effect. Contact us now!
Product introduction
Description of YSX-250 4 Head Automatic Stone Moulding Machine
YSX-250 4 Head Automatic Stone Moulding Machine, this machine is applied to profile and polish straight line for marble, artificial stone. The operation is very simple, put the slab on the conveyor belt, the belt will drive the material into working area automatic. The profile shapes is decided by profiling wheels. For different material, the numbers of wheel is different. Usually, use rough, middle rough and mirror polish wheels. The number is smaller, the wheel more rougher. The profile wheel adopts the layered grinding way to profile the shapes. The profile wheel use specially structure, which ensure the stability of whole processing. The machine can connect automatic polishing machine, greatly improve the capacity of stone straight line profile & polishing.
Marble Molding Machine:
YSX-250 4 Head Automatic Stone Moulding Machine
Processing material: marble, artificial stone, granite etc.
Profile wheels: plating wheel
Materials of wheels: Diamond
Baffle adjustment: electrical control
Water proof material: stainless steel
Conveyor: Infinitely variable speed motor
Stone Profiling Machine Processed Products:
1、3/4"X 6" Chair Rail Pencil Profile Molding Trim Piece Wall Tile
2、4x12 Baseboard Crown Molding Polished Marble
3、marble 5x12 skirting baseboard decorative polished molding trim double
4、2x12 Chair Rail Bullnose Trim Molding Polished
5、marble 2x12 chair rail decorative Polished Bullnose molding
6、Marble 1/2 x 12 Polished Pencil Liner Trim Molding
7、Marble Skirting Baseboard Decorative Polished
8、2x12 Moulding Tile
Parameter of YSX-250 4 Head Automatic Stone Moulding Machine
Machine specifications
| Squaring head | 1pc |
|---|---|
| Profile heads | 4pc |
| Motor power of profile head | 7.5kw |
| Diameter of squaring wheel | Ø200mm |
| Diameter of profile wheel | Ø200mm*60mm |
| Profile head lifting | Manual press button |
| Conveyor motor | 2.2kw |
| Processing thickness | 10-70mm |
| Processing width | 30-400mm |
| Processing speed | 0.3-3m/min |
| Total power | 36.6kw |
| Size of machine (4 profile heads) | 3.8m×1.8m×2m |
| Size of machine (6 profile heads) | 4.7m*1.8m*2m |
| Weight | About 2000kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
